VISION SYSTEM FOR
QUALITY CONTROL AND AUTOMATIC REJECTION OF NON-COMPLIANT PRODUCTS

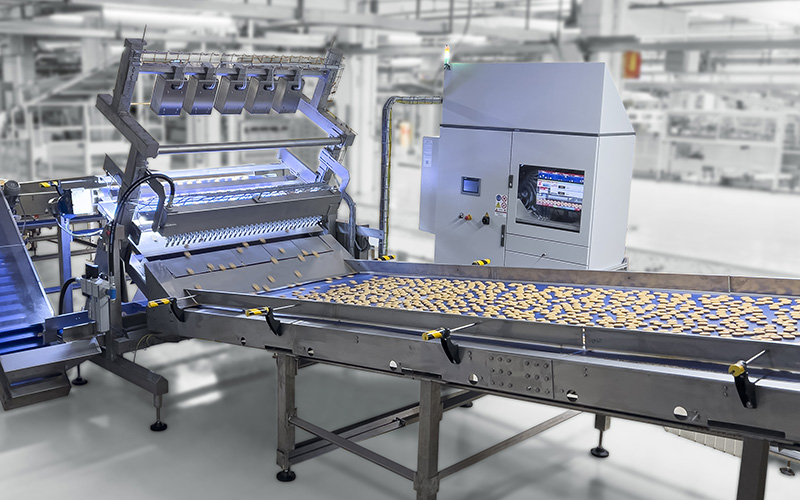

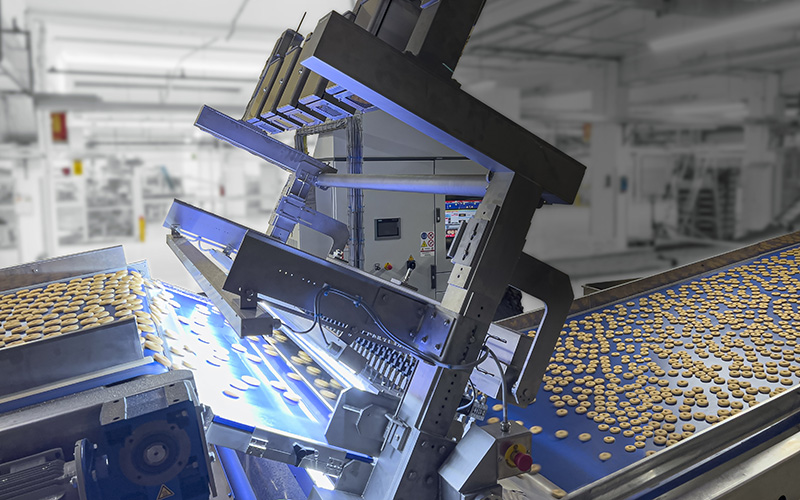

SENSURE STARGATE ML-C is an innovative vision system that, thanks to the use of SENSURE SYNAPSE technology, allows you to perform the quality control of highly variable products and automatically reject non-compliant ones.
SENSURE STARGATE ML-C also guarantees continuous monitoring of the process with data collection and analysis, providing a real-time display and dedicated reporting.

Dimensional data

Line width from 600 mm (24”) up to 2.000 mm (80”)
Total width Line width + 800 mm (32”) (without belt hopper)
Total height 2.800 mm (110”) (approx.)
Total size 970 mm (40”) (approx.)
Height of products at entrance and exit 1.600 mm (65”) (approx.) at entrance
1.000 mm (40”) (approx.) at exit
Weight from 900 kg (2.000 lbs) to 1.600 kg (3.500 lbs) (approx.) depending on line width
Download brochure STARGATE ML-C
1 2 3 4 5 6 7 8 9
1

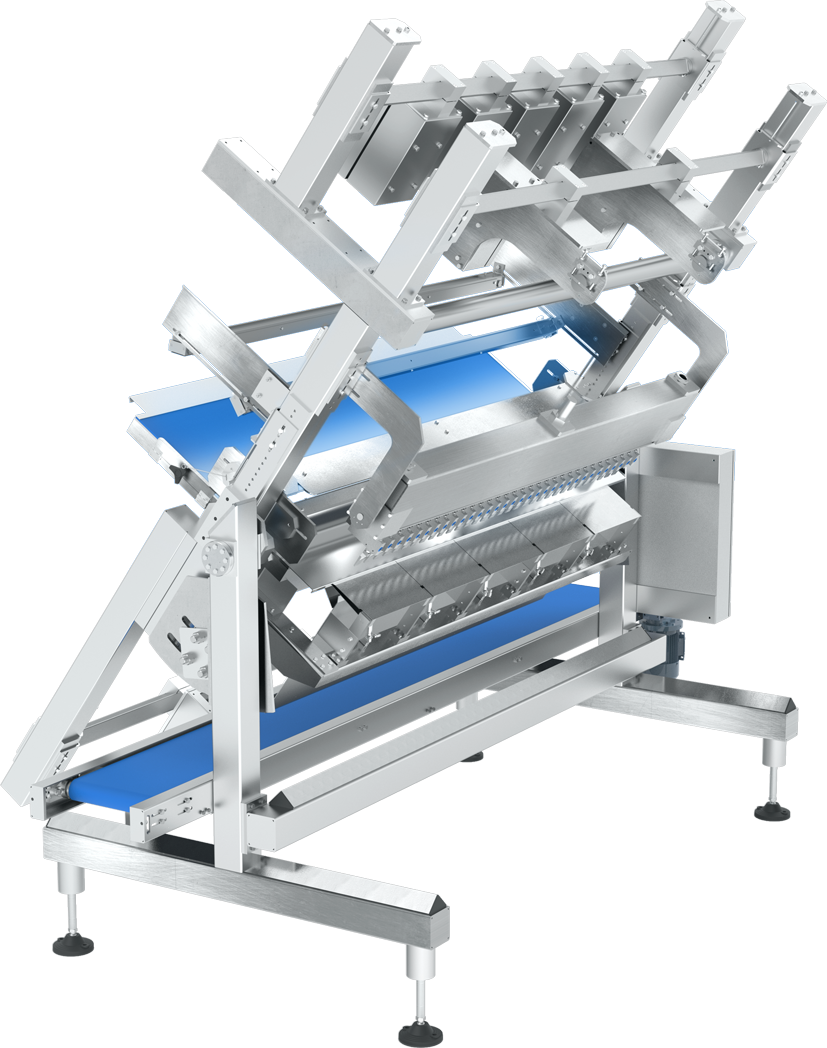

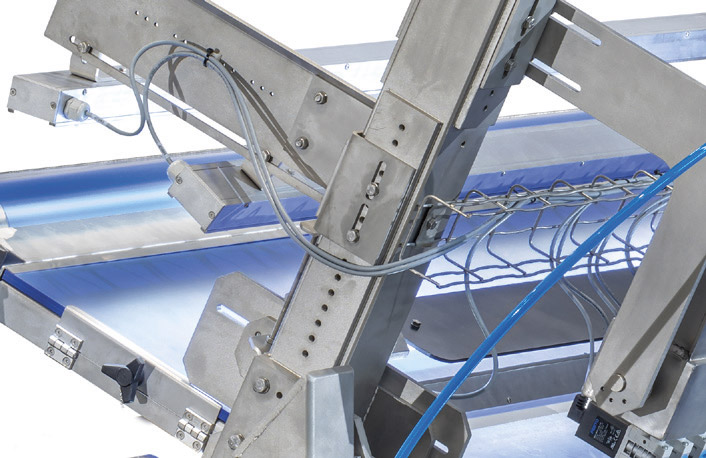

Compact and modular stainless steel structure (the modularity of the system allows to integrate the different types of control even at different times).
2

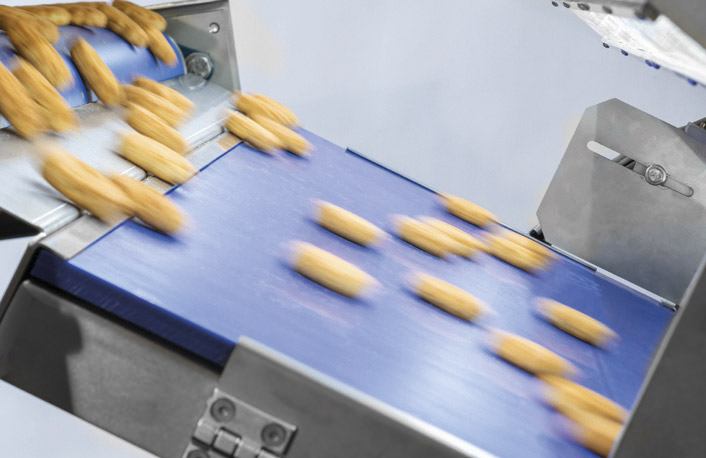

Easily interchangeable polizene plate for products sliding (low friction system and compliant with regulations required in the food industry).
3

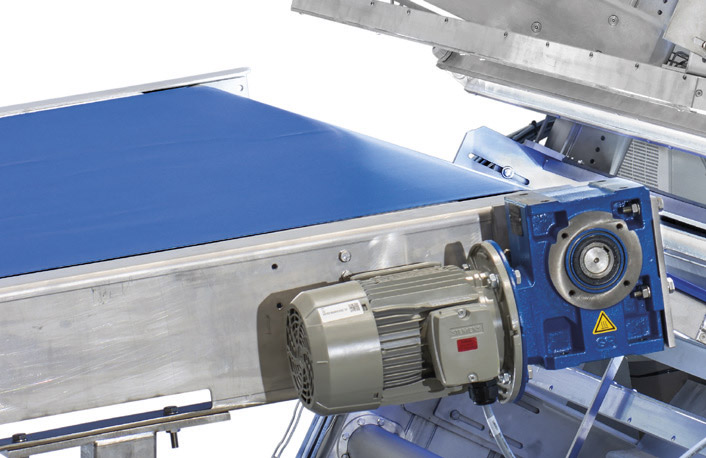

Customized conveyors for products handling at the entrance and exit of SENSURE STARGATE ML-C.
4

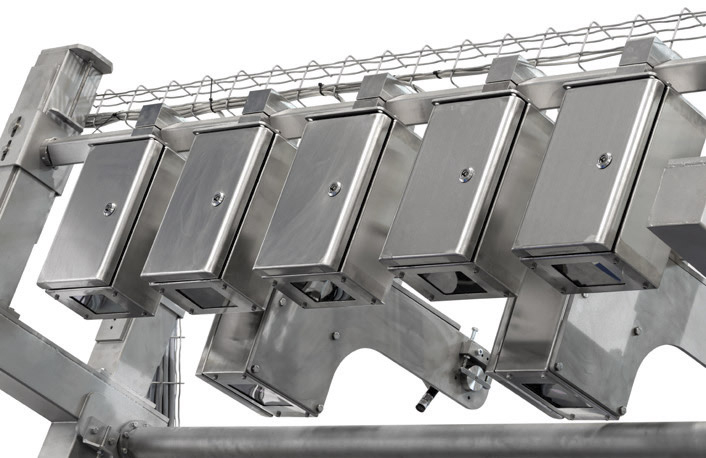

Vision points for 2D measurements from the top.
5

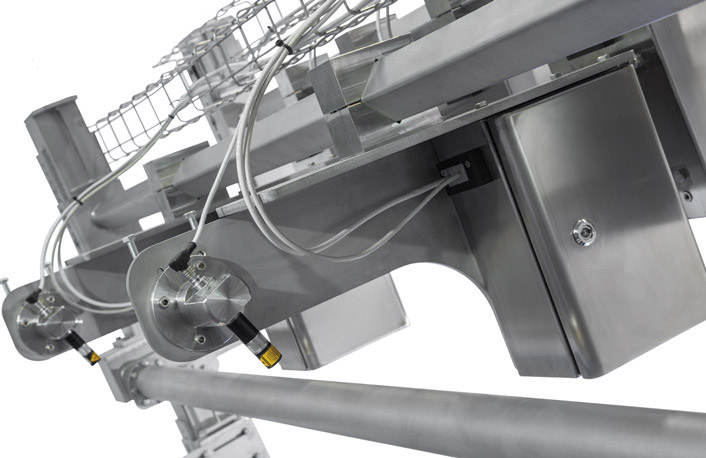

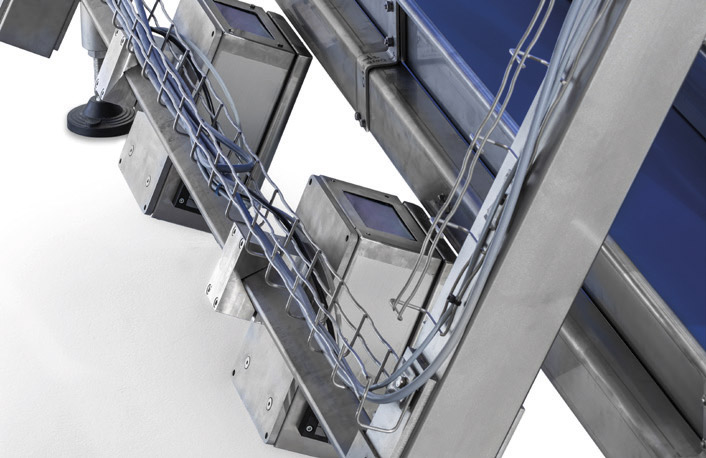

Vision points for 2D measurements from the bottom.
6
Vision points for 3D measurements.
7

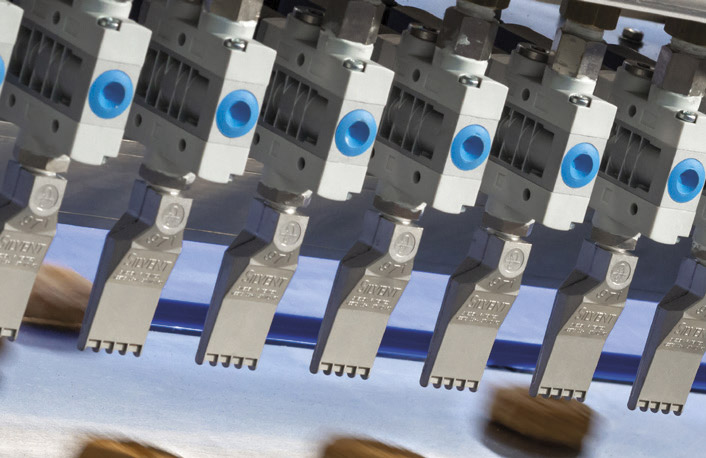

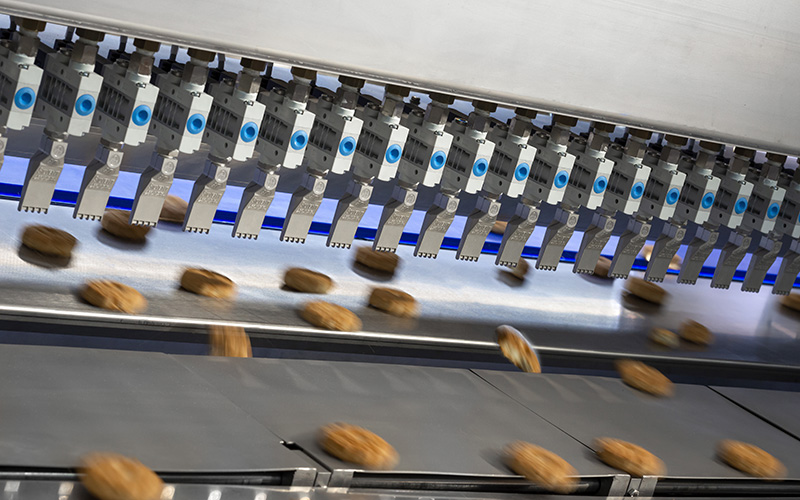

Air nozzles for the rejection of the single non-compliant product.
8

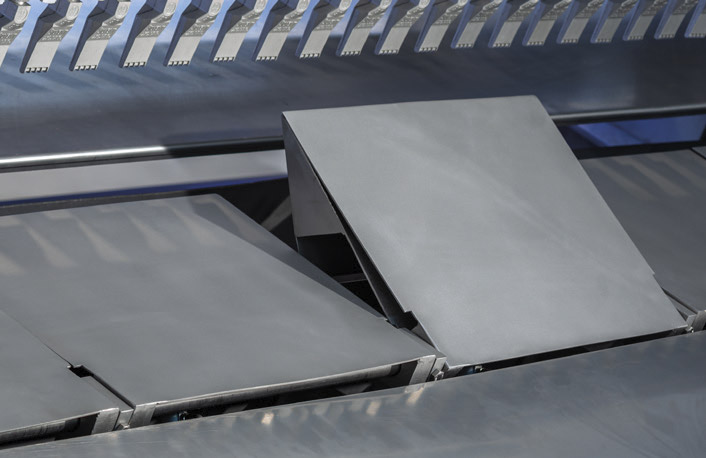

Traps for the rejection of multiple non-compliant products.
9

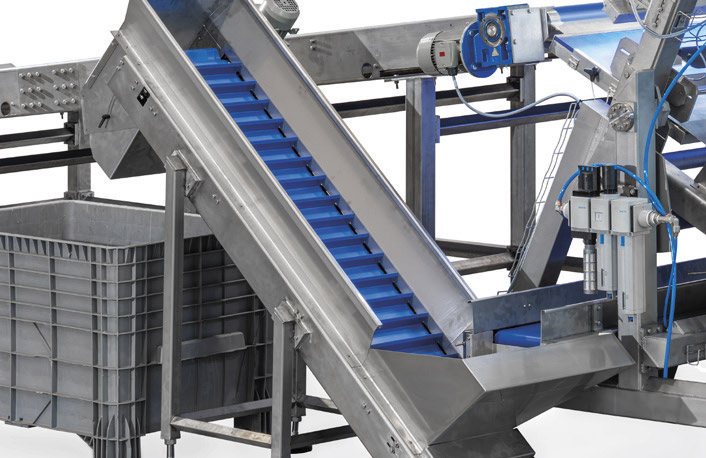

Belt hopper for the handling of the non-compliant products in a dedicated bin.
1
Compact and modular stainless steel structure (the modularity of the system allows to integrate the different types of control even at different times).
2
Easily interchangeable polizene plate for products sliding (low friction system and compliant with regulations required in the food industry).
3
Customized conveyors for products handling at the entrance and exit of SENSURE STARGATE ML-C.
4
Vision points for 2D measurements from the top.
5
Vision points for 2D measurements from the bottom.
6
Vision points for 3D measurements.
7
Air nozzles for the rejection of the single non-compliant product.
8
Traps for the rejection of multiple non-compliant products.
9
Belt hopper for the handling of the non-compliant products in a dedicated bin.
COMPACT AND SOLID SYSTEM
Full compliance with the requirements of the food industry.
TOTAL PRODUCTION CONTROL
Control at maximum line speed, with accurate, reliable and fast measurements.
MULTIPLE MEASURABLE QUALITY PARAMETERS
Ability to perform 2D (from top and bottom) and 3D measurements to identify defects in size, shape, colour and volume.
SINGLE OR MULTIPLE REJECTION OF NON-COMPLIANTS PRODUCTS
Single reject by air nozzles or agglomerated products with traps.
DEDICATED ELECTRICAL CABINET WITH OPERATOR INTERFACE
Intuitive graphic interface with the possibility of remote connection to the system.
REAL-TIME DISPLAY, DATA COLLECTION AND REPORTING
Storage of the entire production data in a SQL database, which can also be integrated into third-party software.
EASILY INTEGRATED IN LINE
Possibility of exchanging signals and information with conveyors/machines/systems. Quick installation within existing lines.
SAFE AND READY FOR INDUSTRY 4.0
Full compliance with safety standards and with the requirements for Industry 4.0.
